Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000

Name: Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000
Brand: FAST
Price: 108527 USD

China Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000 factory

Brand Name : FAST

Model Number : SWZ1000

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD 108527 /set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300sets/ year

Delivery Time : 40~60days

Packaging Details : Film; plywood pallet

Condition : New

Warranty : 12 Months

Port : Qingdao Port

MOQ : 1 SET

Service : 24 hours online services

Voltage : 380V

Certificate : ISO9001

CNC or Not : CNC

Manufacture : OEM ODM Acceptable

Function : Drilling

Contact Now

Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000

Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000

APPLICATION

This machine is used for drilling H-beam, channel steel, box beam, angle steel and other industries in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries. It adopts high-speed spindle processing with high efficiency and high precision.

FEATURES

Integrated machine with mechanical, electrical and hydraulic elements;
This machine has three power heads. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the three sides of the workpiece can be processed in one pass;
The drilling spindle adopts high-precision BT40 spindle;
The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;
The bed is welded by thick-walled steel pipes. The aging treatment is carried out after welding to ensure the stability of the bed and the accuracy of the entire machine tool.
The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
The main electrical control components and hydraulic and pneumatic components are imported accessories;
Providing G-code software program that can directly convert CAD graphics into executable machine ;
Graph display of processed parts;
With fault self-diagnosis function.

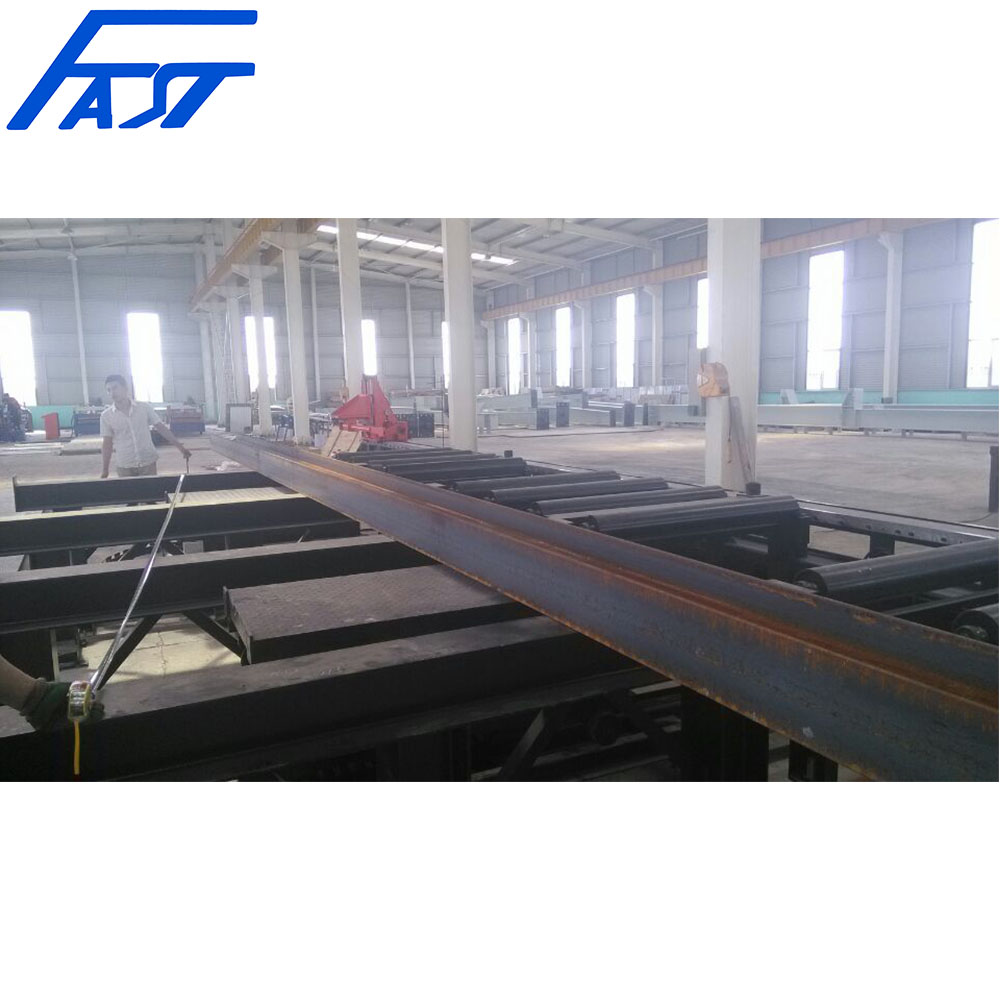

COMPOSITION

Horizontal storage rack	Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway)
CNC Infeeding Trolley	CNC trolley running track
Loading side power raceway	Three-dimensional drilling unit
Offloading side power raceway	Side pusher system
Automatic chip conveyor	Mist cooling system
Electric control cabinet	Hydraulic station

TECHNICAL DATA

Model	SWZG400-3	SWZG700-3	SWZG1000-3	SWZG1250-3
H-beam Max. Web Weight*Max. Flange Height (mm)	400*300	700*400	1000*500	1250*600
H-beam Min. Web Weight *Min. Flange Height (mm)	100*75	150*100
Automatic Feeding Length (mm)	1500~12000	2000~~14000
Max. Web Thickness (mm)	≤60
Max. Drilling Diameter (mm)	Φ40
Feeding Speed (mm/min)	20~5000
NO. of Spindle	3
Rotation Range of Each Spindle (r/min)	100~3000
Spindle Type	BT40
Tool Magazine (Optional)	3
Number of Tools In Tool Magazine (Optional)	3*4
Cooling	With Air Cooling System
Upper Spindle Movement Range (mm)	20~360	40~660	40~960	40~1160
Left and Right Spindle movement range (mm)	20~280	30~370	30~470	30~570
Marking Function(Optional) Marking Number	36
Character Size (mm)	141020
Overall Dimension LWH (m)	2243.2	294.23.4	334.53.6	334.83.8

★ All of these models can be customized according to customer requirements.
