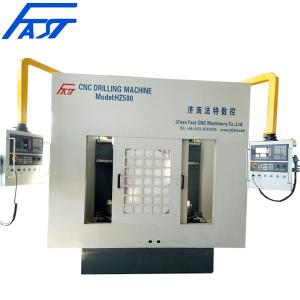

Jinan Customized CNC Double-Spindle Round Parts Drilling Machine Model FLZ500-30-2 Exported to Russia

Name: Jinan Customized CNC DoubleSpindle Round Parts Drilling Machine Model FLZ500302 Exported to Russia
Brand: FAST
Price: 40000 USD

China Jinan Customized CNC Double-Spindle Round Parts Drilling Machine Model FLZ500-30-2 Exported to Russia factory

Brand Name : FAST

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 300sets/year

Delivery Time : 40days

Packaging Details : Film；Plywood Box

Model Number : FLZ500-30-2

Price : USD 40000~50000/ Set

Condition : New

Cnc or not : CNC

Color : White

Voltage : 380V

After-sales service provided : Engineers available to service machinery overseas

Warranty : 12 months

Outline Size : About 1800×1360×2340mm

Weight : About 3000kg

Tool Cooling System : Mist Cooling System

Contact Now

Jinan Customized CNC Double-Spindle Round Parts Drilling Machine Model FLZ500-30-2 Exported to Russia

Jinan Customized CNC Double-Spindle Round Parts Drilling Machine Model FLZ500-30-2 Exported to Russia

APPLICATION

This machine mainly used for high efficiency drilling of flange, round material and circle parts.

FEATURES

It has double spindles, double rotation work table flame drilling machine, the high efficiency flange drilling machine.
Two spindles can drill at the same time, or drill separately.
It can drill through hole or blind hole. Processing of working is controlled by CNC, which is easy to operate. It can realize automation, high precision, mass production.
Operator just needs to input numbers of hole and sets diameter of the holes be drilled in the pitch circle, then this machine can operate automatically.
Very easy to operate, high efficiency, cost worthy machine.
Linear guide rail and precision ball screw driving
Machine has high position and reposition accuracy

MAIN COMPOSITION

Two work tables	Two drilling power heads
Automatic chip removal device	Circulating cooling system
Pneumatic system	Electrical system

TECHNICAL DATA

Item	Name	Specifications
Workpiece	Thickness	Max. 100mm
Workpiece	Diameter Size	≤φ500mm
Spindle	Spindle Taper	Morse 3#
	Drilling Diameter	Φ6~30mm
	Shift Type	Frequency inverter step less speed change
	Rotate Speed	30－1000r/min
	Spindle Stroke	300mm
	Spindle Feeding Speed	0-4000mm/min step less speed regulating
Quantity of CNC Axis		4 Axes
Workholding	Clamping Way	Four-jaw self-centering chuck
Tool Cooling System	Cooling Method	Mist Cooling System
Air pressure	Pressure	0.6MPa(6kgf/cm²)
Motor	Spindle	4 KW×2
	Y and Z axis servo motors	1.2KW×4
	Rotary shaft servo motor	1.5KW×2
Accuracy of Machine	Position Accuracy	≤0.1mm whole length
	Re-Position Accuracy	≤0.06mm whole length
	Run Out of Surface And Side of Spindle	≤0.03mm
Pressure of Lubrication System		1.0MPa
Pressure of Cooling System		0.2MPa
Outline Size	L×W×H	About 1800×1360×2340mm
Weight	Total Weight	About 3000kg
NOTE: Pneumatic system usage:When drilling function provide power,it is cylinder fixed work table. This ensures rotation work table chuck to be in static status.
